Inverted Bucket Steam Trap Failure

Inverted bucket traps rely on the density difference between steam and water to drain condensate as it forms. Armstrong s developments and improvements in steam trap design and function have led to countless savings in energy time and money. With a fine instrument you can even hear the snap crackle pop of steam passing across the head and seat of a wiredrawn inverted bucket trap.

key west cottage rentals near duval instant cold coffee maker high chair with removable tray insert lamb dog toy hurricane impact garage doors prices hidden cat litter furniture interior door molding sizes knapheide tool box doors

Lack Of Steam Trap Knowledge Is The Weakest Link

Mechanical Steam Traps Ball Float Steam Traps And Inverted Bucket Steam Traps

Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gctwyo Timlkmdhkl8m7qv1vv6udvhki9 Luwg Usqp Cau

Inverted Bucket Steam Trap The Piping Engineering World

Ib Series With Strainer Inverted Bucket Steam Traps Watson Mcdaniel

Inverted Bucket Steam Traps Watson Mcdaniel

Figure 11 3 3 shows the method of operation.

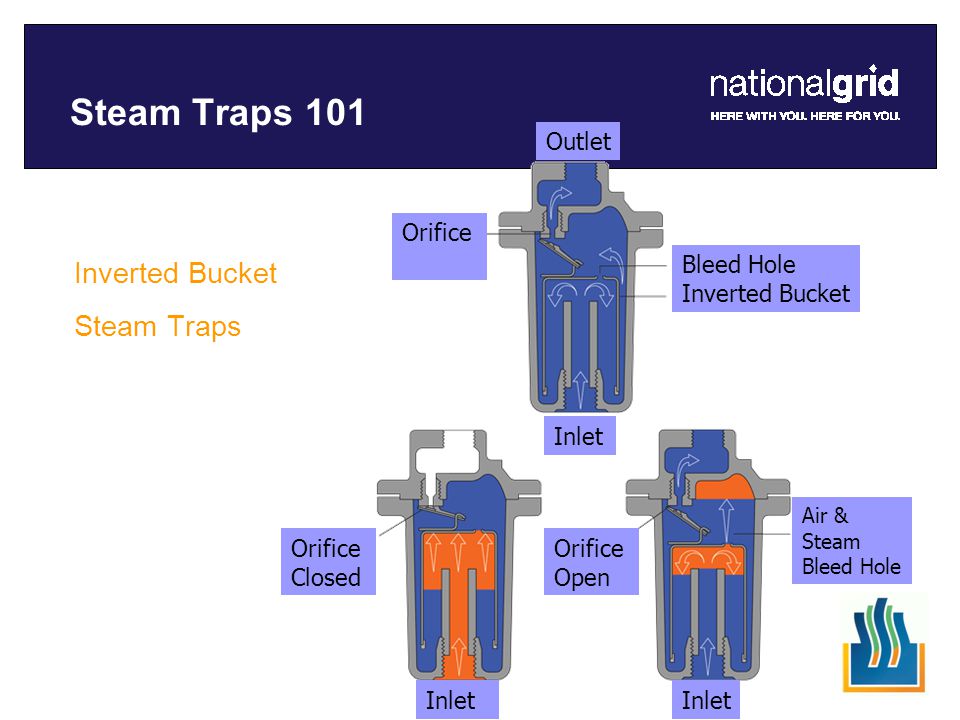

Inverted bucket steam trap failure. An inverted bucket floats in condensate that surrounds the bucket. This section has grown out of our decades. The inverted bucket within the trap will rest on the bottom of the trap body keeping the valve open and allowing condensate to be discharged figure a in the top of the bucket there is a small bleed hole which allows air to escape from inside the bucket and exit through the outlet port figure b when steam arrives through the inlet of the trap it fills the inverted. As the bucket moves up and down in the condensate a linkage connected to the bucket closes or opens a discharge valve trapping the condensate or allowing it to escape.

Once failure is confirmed the trap should be either repaired or replaced as soon as possible to capture the maximum gain on investment. The same is true of listening to a steam trap. When listening to a quality speaker system the nuances of what was actually recorded opens your ears to new level of listening. A steam trap selection guide float thermostatic inverted bucket bimetal thermostatic impulse and thermodynamic disc steam traps sponsored links a steam trap is a self contained valve which automatically drains the condensate from a steam containing enclosure while remaining tight to live steam or if necessary allowing steam to flow at.

The inverted bucket steam trap is shown in figure 11 3 3. Spirax sarco inverted bucket steam traps are the most robust type of the mechanical steam traps and can resist waterhammer. For an accurate diagnosis of trap condition obtaining help from an experienced professional that uses specialized equipment is key. If you continue without changing your cookie settings we assume that you consent to our use of cookies on this device.

Trap priming all inverted bucket steam traps are basically self priming on initial start up and should require no further priming normally on a cold start up of the equipment being trapped enough condensate reaches the steam trap body to create the necessary water seal prime before steam reaches it. The energy efficient inverted bucket steam trap in 1911. As its name implies the mechanism consists of an inverted bucket which is attached by a lever to a valve. The inverted bucket steam trap energy efficient because it s so reliable the inverted bucket is the most reliable steam trap operating principle known the heart of its simple design is a unique leverage system that multiplies the force provided by the bucket to open the valve against pressure since the bucket is open at.

Testing steam traps is an important part of managing your steam trap population. In the years since customers savings have proven again and again that knowledge not shared is energy wasted. Inverted bucket steam trap. An essential part of the trap is the small air vent hole in the top of the bucket.

We use cookies to give you the best experience on our website.
